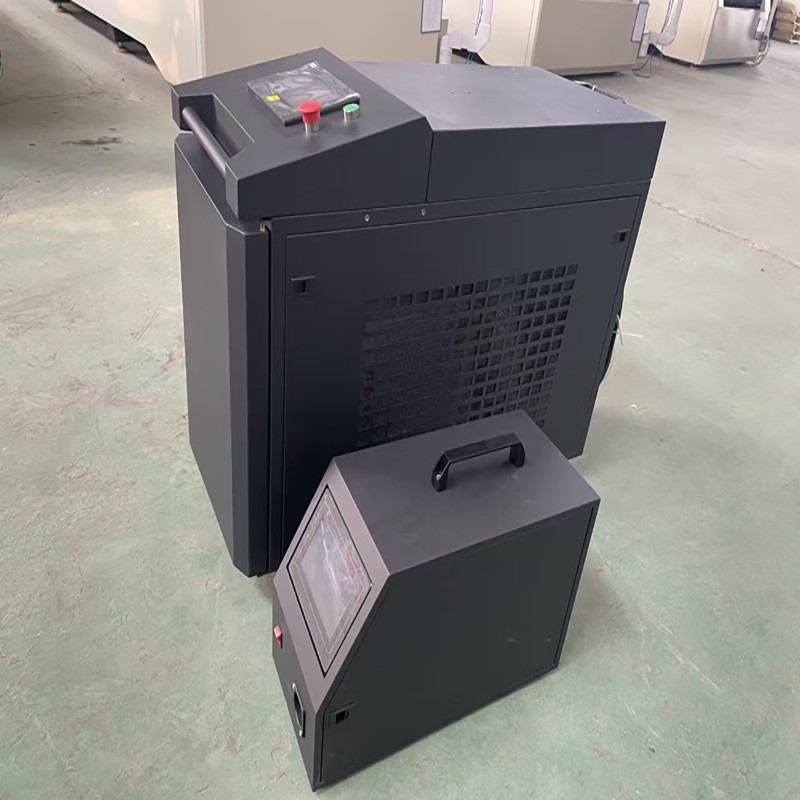

handheld laser cutter

Technical Specifications of Handheld Fiber Laser Cutting Machine

Category Parameter Specification
Laser System Laser Type Fiber Laser
Rated Output Power 1000 W
Laser Wavelength 1064 nm
Cutting Capacity Carbon Steel Stainless Steel Aluminum
Maximum Thickness 12 mm 6 mm 3 mm
Recommended Thickness ≤ 8 mm ≤ 4 mm ≤ 2 mm
Cutting Performance Max. Cutting Speed 20 m/min
Positioning Accuracy ±0.05 mm
Cutting Head
Focal Length 75 mm / 100 mm (Optional)
Nozzle Diameter Φ1.5 mm / Φ2.0 mm
Follower System Auto Height Control (AHC)
Electrical Rated Voltage AC 220V, 50/60 Hz
Power Consumption ≤ 3 kVA
Cooling System Cooling Method Air Cooling
Physical Machine Dimensions (LxWxH) Approx. 550 x 350 x 200 mm
Net Weight Approx. 25 kg
Software & File Control System Integrated Industrial PC
Supported Formats DXF, DWG, AI, etc.
Operating Environment
Temperature 5°C ~ 45°C
Humidity < 80% (Non-condensing)
