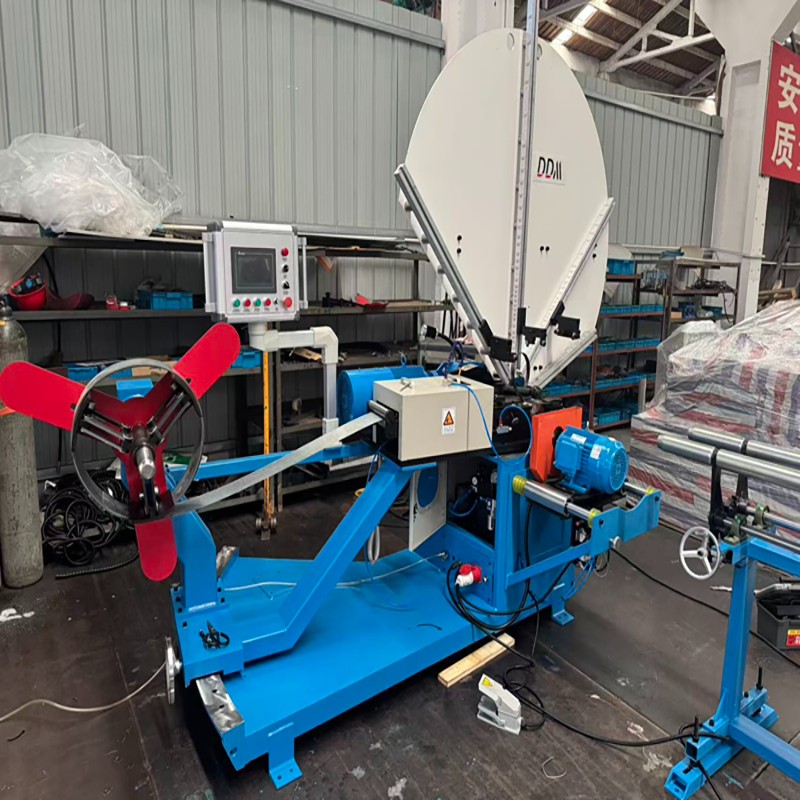

Spiral duct forming machine

Spiral Duct Machine Technical Parameters

General Data:

Model: SDM-1000A

Power Supply: 3PH, 380V, 50/60Hz

Total Power: 12 kW

Air Pressure: 0.6-0.8 MPa

Air Consumption: 200 L/min

Noise Level: ≤75 dB

Production Capacity:

Duct Diameter Range: Ø102mm - Ø1000mm

Material Thickness: 0.4mm - 1.2mm (Galvanized Steel)

Production Speed: 6 - 25 m/min (adjustable)

Coil Width: 100mm - 1350mm

Max Coil Weight: 5000 kg

Coil Inner Diameter: 508mm (20")

Main Components:

Control System: PLC + 10" Color Touch Screen (HMI)

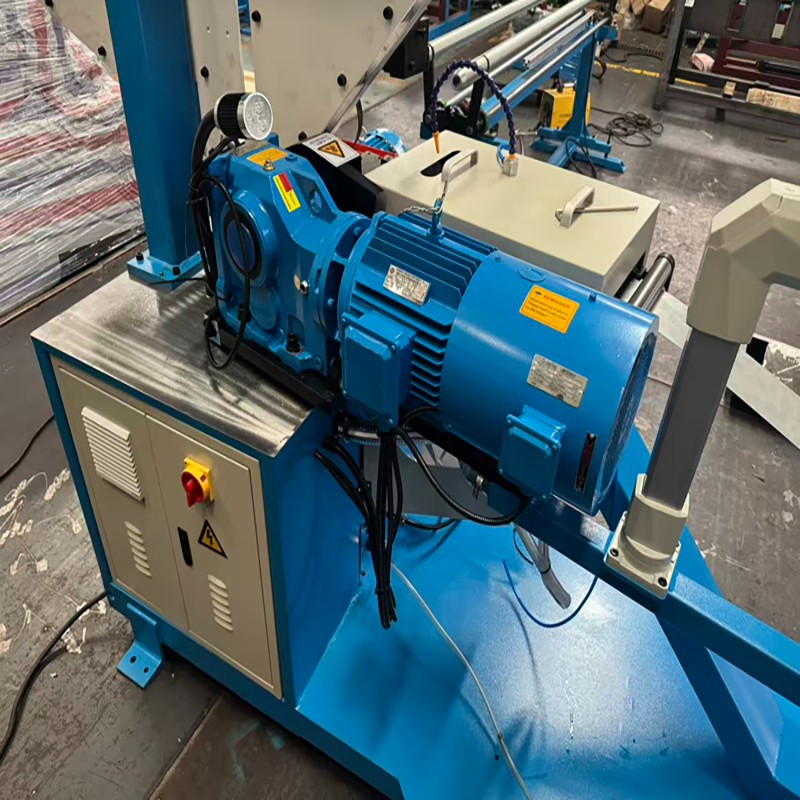

Drive System: AC Servo Motors

Decoiler: Motorized, Single Head

Cutter: Pneumatic Flying Cut-off

Seam Type: Button Lock Snap

Physical Specifications:

Machine Dimensions: 12000 x 2500 x 1800 mm (LxWxH)

Net Weight: Approx. 5500 kg
