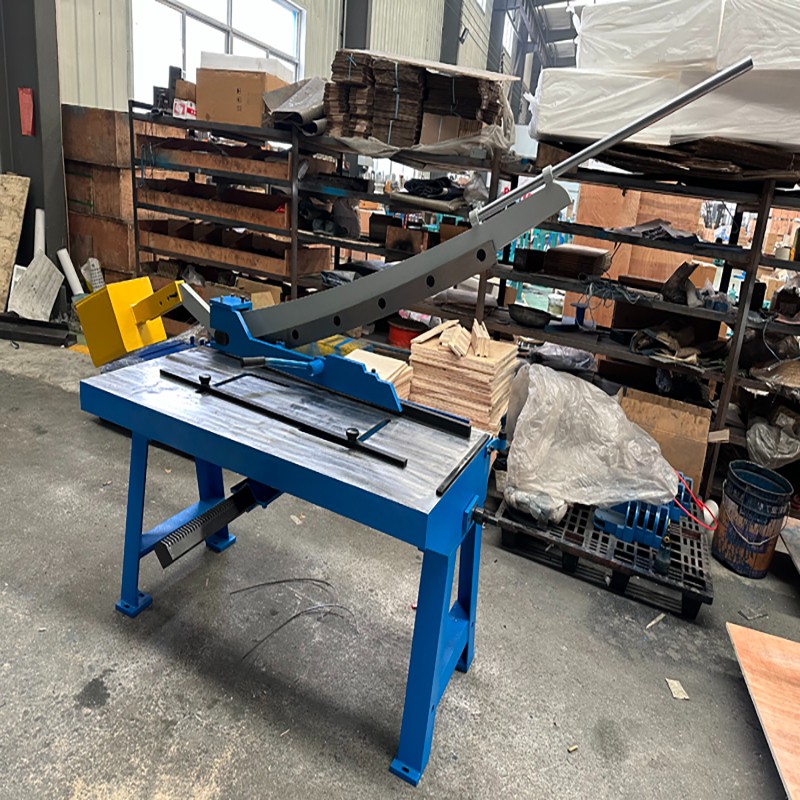

manual guillotine shear

Manual Guillotine Shear - Technical Specifications

Model: MG-1220

Cutting Capacity: 1/4" (6 mm) Mild Steel

Blade Length: 48" (1220 mm)

Max. Cutting Length: 48" (1220 mm)

Blade Gap: 1-1/2" (38 mm)

Blade Material: T10 Tool Steel, 4 Cutting Edges

Blade Angle: 2°

Frame: Heavy-duty Welded Steel Construction

Back Gauge: Manual Rack-and-Pinion Type with Scale

Table: Equipped with Front Scale and Squaring Arm

Operation: Manual Lever with Safety Lock

Net Weight: 550 lbs (250 kg)

Overall Dimensions: 55" x 32" x 42" (1400 x 810 x 1065 mm)
