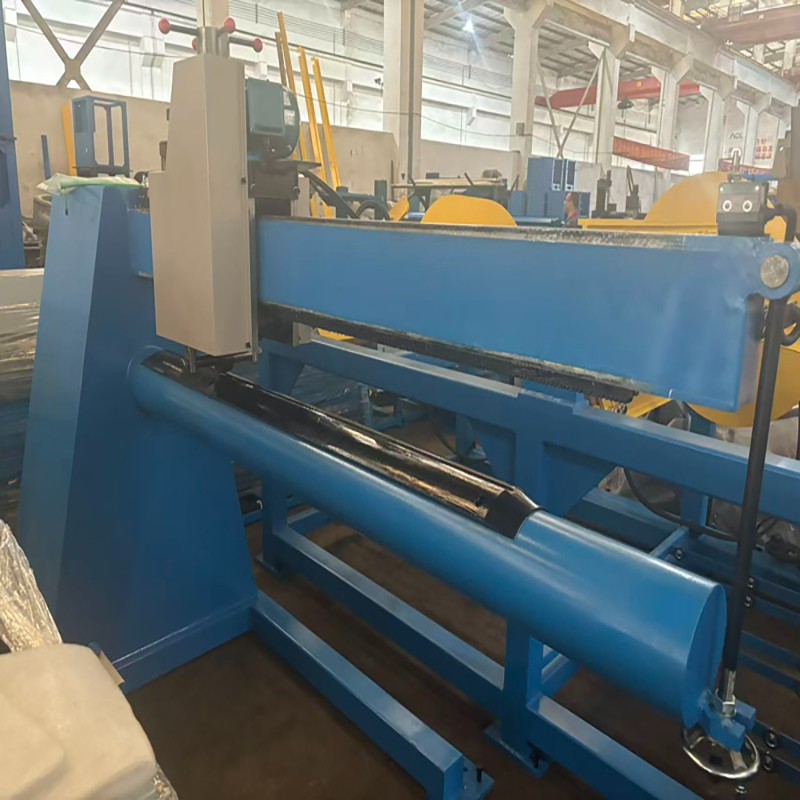

Round Pipe Seaming Machine Duct Seaming Machine

Round Duct Seaming Machine Technical Parameters

Category Parameter Details / Value
Basic Info Product Name Round Duct Seaming Machine
Model SJ-1500
Application For forming the longitudinal button lock snap seam on round HVAC ducts.
Technical Specs Processable Diameter φ150mm - φ1500mm
Sheet Thickness 0.5mm - 1.2mm (Galvanized Steel)
Seam Type Button Lock Snap
Seaming Speed 0 - 10 m/min (Adjustable)
Main Motor Power 2.2 kW, 3 Phase
Power Supply 380V, 50/60Hz
Physical Specs Machine Dimensions 2200 x 900 x 1300 mm
Net Weight Approx. 750 kg
Roller Material High-Carbon Chrome Steel, Heat Treated
Features Control PLC & HMI for easy operation and parameter setting.
Safety Emergency stop button and full protective covers.
Options Auto-feeding table, Support stands.
