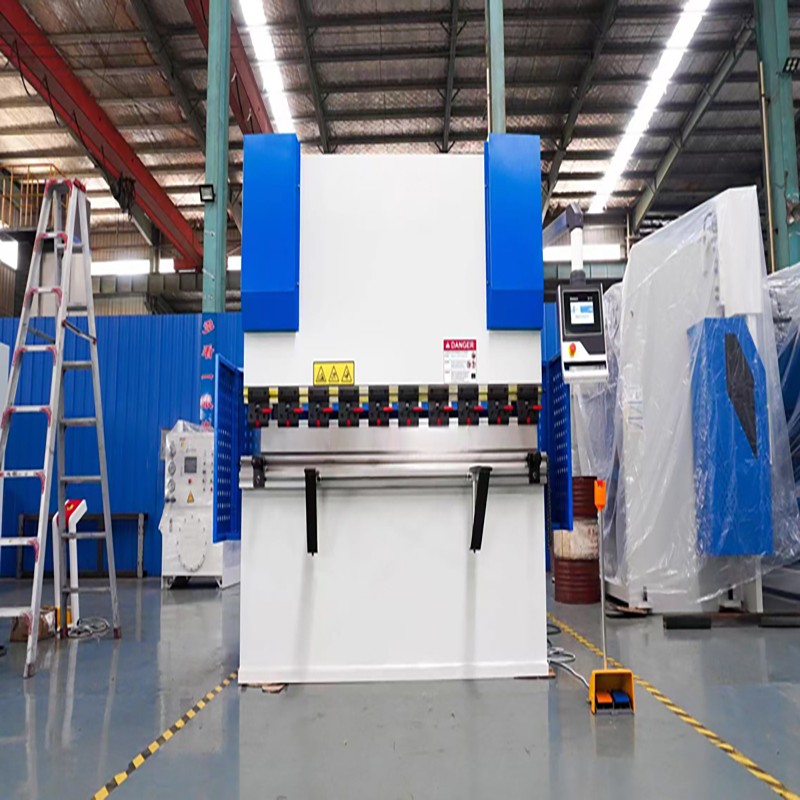

Press Brake Bending Machine

CNC Hydraulic Press Brake Technical Parameters

Category Parameter Details / Value
Basic Info Product Name CNC Hydraulic Press Brake
Model WC67K-100T/3200
Control Type CNC (e.g., Delem DA-66T)
Capacity & Dimensions Nominal Pressure 100 Tons (1000 kN)
Table Length 3200 mm
Distance Between Frames 2550 mm
Throat Depth 250 mm
Max. Open Height 450 mm
Ram Stroke 100 mm
Performance Main Motor Power 11 kW
Hydraulic Pressure 25 MPa
Bending Speed (Fast) 80 mm/s
Bending Speed (Slow) 10 mm/s
Accuracy & Tooling Repeat Positioning Accuracy ±0.0025 mm
Parallelism ≤ 0.2 mm / full length
Back Gauge Stroke (X) 0 - 500 mm
Back Gauge Motor Power 1.5 kW
Features Standard Features Centralized lubrication, safety light curtains, crowning system (optional)
