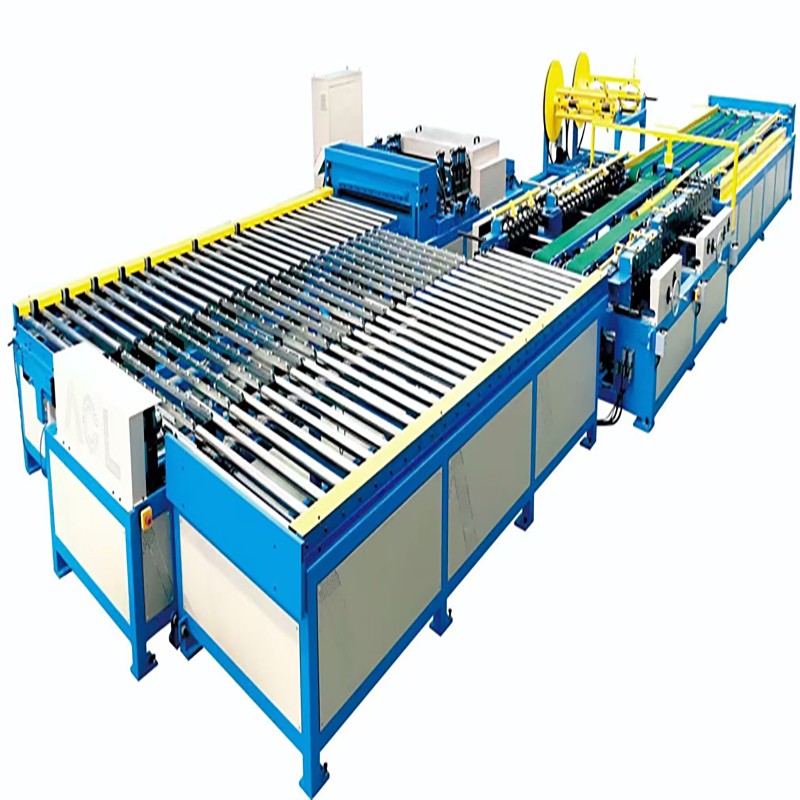

Rectangular duct line

echnical Specifications for HVAC Duct Production Line (Model: DPL-5S)

Station Component Key Parameters
General Overall Control Control System: PLC & Touch Screen HMI
Production Speed: Up to 20 m/min
Power Supply: 380V/3Ph/50Hz
Material Type: Galvanized Steel Sheet
Thickness: 0.4mm - 1.2mm (28 Ga. - 20 Ga.)
Coil Width: 200mm - 1300mm
Station 1 Decoiler Max. Coil Weight: 2000 kg
Coil I.D.: 508 mm
Coil O.D.: 1500 mm
Station 2 Beading Machine Bead Type: Double Bead
Drive: Servo Motor
Station 3 Hydraulic Shear Shearing Accuracy: ±0.5 mm
Blade Material: Cr12MoV Alloy Steel
Station 4 & 5 Lock Former & Folding Machine Lock Types: Pittsburgh Lock & Snap Lock
Max. Folding Length: 1300 mm
Flange Height: 10mm - 50mm
