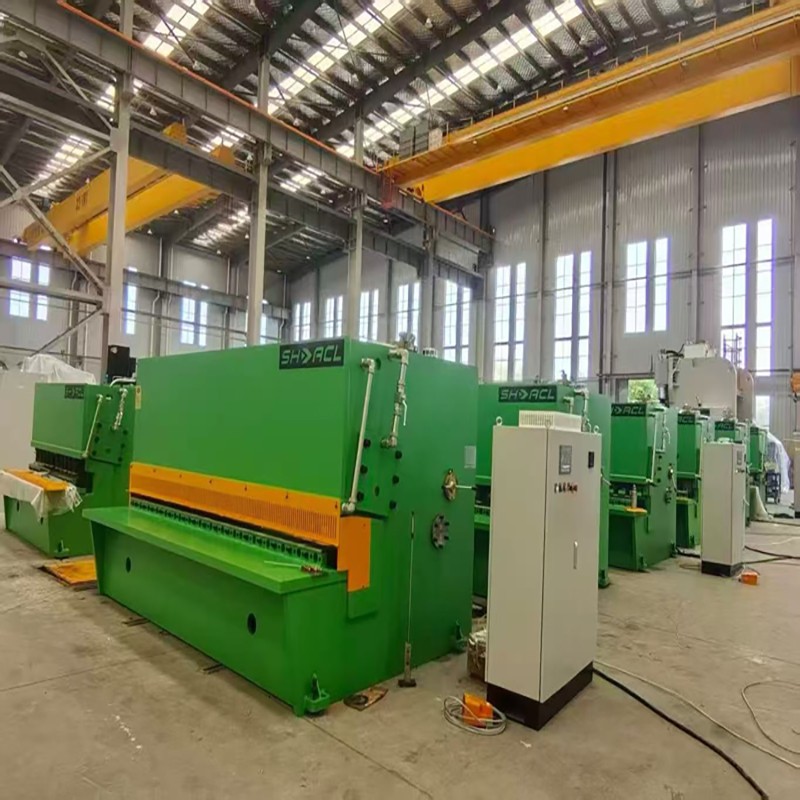

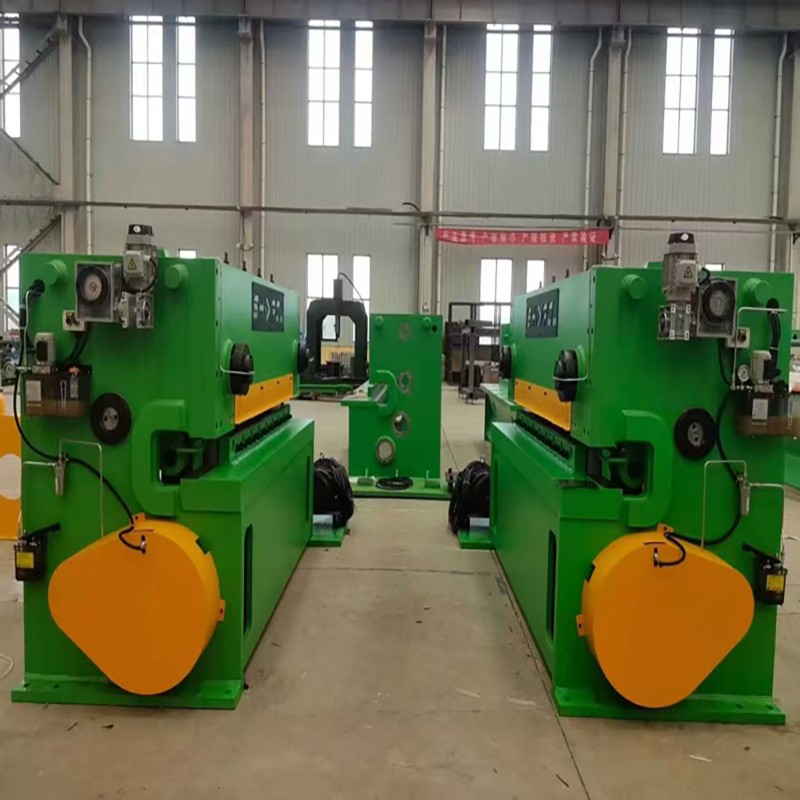

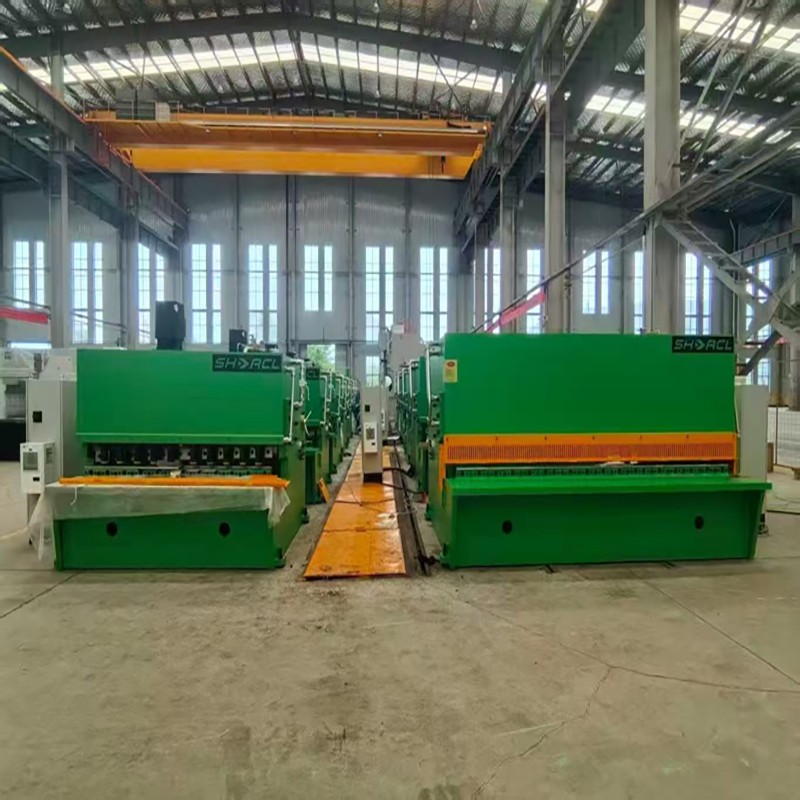

CNC guillotine shear

Technical Specifications for CNC Guillotine Shear (Model: QC-6x3200)

Category Parameter Details
Cutting Capacity Max. Thickness x Length 6mm x 3200mm (Mild Steel, σb≤450MPa)
Shearable Materials Mild Steel, Stainless Steel, Aluminum Plate
Rated Shearing Force 400 Tons
Mechanical Structure Frame Solid Steel Plate, Stress-Relieved
Ram Type Swing Beam
Throat Depth 500mm
Blade System Blade Material 6CrW2Si Alloy Tool Steel
Blade Length 3300mm
Gap Adjustment Motorized, CNC Controlled
CNC & Back Gauge Control System CYBELEC DNC 60S
Back Gauge (X) Travel: 0-600mm Accuracy: ±0.10mm
Back Gauge (R) Travel: 0-100mm (for flapping)
Power & Hydraulic Main Motor Power 15 kW
Hydraulic System Integrated Cartridge Valve, Oil Cooling
General Net Weight Approx. 12,000 kg
Power Supply 380V, 3-Phase, 50Hz
