HVAC duct line III

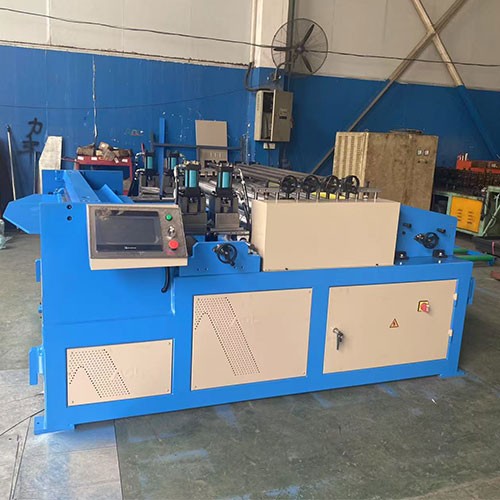

HVAC duct automated production line III
| Mechanical parameters | ||
| Thick sole (mm) | Galvanized sheet "0.5-1.2mm" | |
| Galvanized sheet: 0.5-1.5mm Stainless steel: 0.5-1.0mm | ||
| Width (mm) | 1000/1250 | 1220/1530 |
| Length (mm) | ≥9999 | |
| Coil weight (t) | 7 | |
| Inner diameter (mm) | 508 | |
| Outer diameter (mm) | 1100 or less) | |
| Working speed (m/min) | ≤15 | |
| Length error (mm/m) | + / - 0.5 | |
| Diagonal error (mm/m) | + / - 0.8 | |
| Bending position error (mm/m) | Plus or minus 1 | |
| Bending Angle error (degrees) | Plus or minus 5 ° | |
| External dimensions (M) | 10 the x1. 8 x1. 6 | 10 x2. 1 x1. 6 |
| Minimum L-shaped (mm) | 5.5 | 6 |
| Minimum mouth shape (mm) | 11.5 | 11.5 |
A. Fixed-length cutting, which can be used directly with a computerized plasma cutter.
B.A. C-bone cutters can be used in conjunction with C-bone flanges and S-strip flanges.
B. TDF self-forming flanges with various connection methods positioning cutting angles,
can be used in conjunction with TDF self-forming flanges and TDF edge-joining machines.
c. Various shears that can be used with Angle iron flanges or zigzag flanges. And can be
folded into 'L', 'U 'and' mouth 'and can be used in conjunction with a joint seam
machine to complete the entire air duct.
C Can complete TDC cutting angles and insert flange bending, such as for the production of
'□' type ducts. It can be used in conjunction with a joint seam machine and insert flanges to
complete a full duct.
