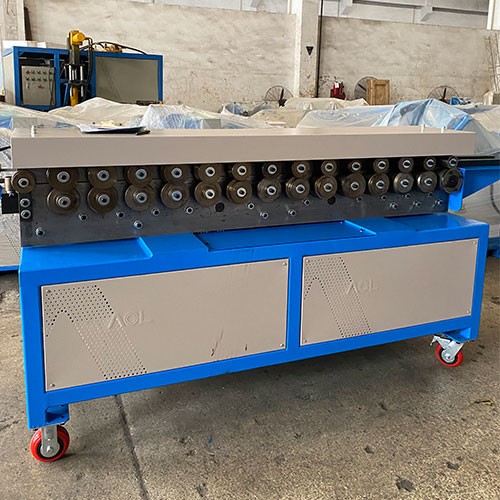

TDF flange machine

The TDF-T12 co-plate flange system is one of the two major systems for making flange connections for ventilation ducts in the world. Based on the international and domestic

installation and manufacturing experience, our engineering technicians designed this excellent machine - the TDF-T12 co-plate flange machine. The TDF series of products can

be combined with our other products such as shearing machines, corner shearing machines, rib pressing machines, edge folding machines, bone rolling machines, corner code

machines, feeding machines, etc. to form a duct production line, and the quality of the ducts produced is standard and reliable. The features are as follows:

Detailed research and discussion were carried out during the design to ensure the safety, reliability and ease of operation of the machine. It has unparalleled performance and price advantages.

The air duct and flange are formed in one piece, eliminating the need for flange fabrication and connection. While improving product quality, it also reduces production costs.

Number	Model	Motor power (KW)	Machined sheet thickness (mm)	Bone shape	"a" size (mm)	Weight (kg)	External dimensions
1520003	T-12	3	0.5 ~ 1.2		35-0.5	1500	2800X600X1120
1520003	T-15S	3	0.5 ~ 1.0S tainless steel Galvanized sheet 0.5-1.5		35-0.5	1530	2850X600X1120
1520044	2-T12	4	0.6-1.2		35-0.5	3000	3200X2700X1100
