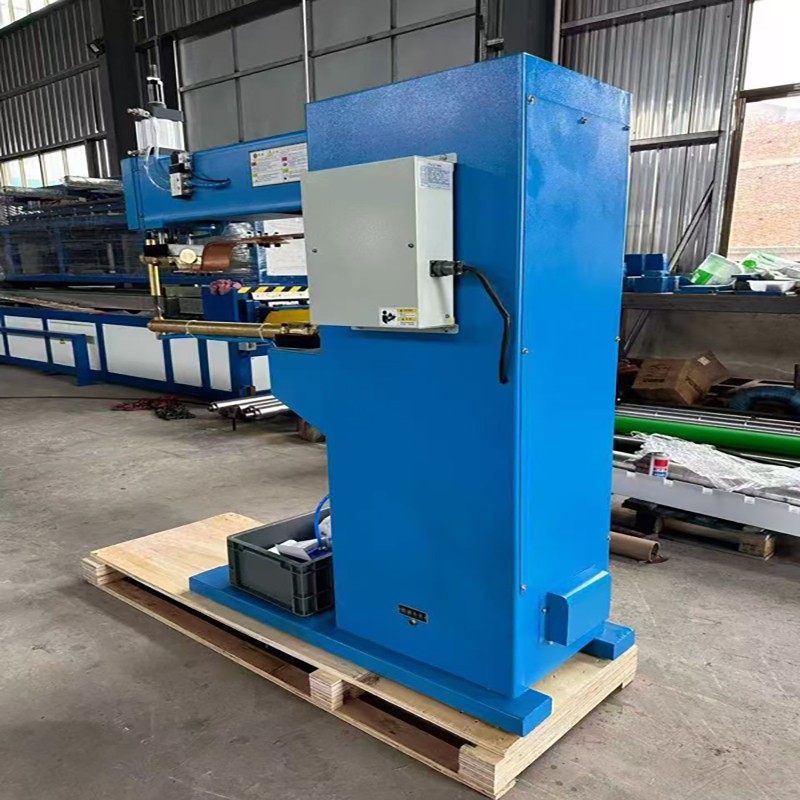

Spot Welding Machine

Technical Specifications for Pneumatic Spot Welding Machine (Model: DNT-80)

Electrical Parameters

Input Supply: 380V / 3-Phase / 50Hz

Rated Input Power: 63 kVA

Rated Welding Current: 16 kA

Current Adjustment: 30-100%

Duty Cycle: 50% @ 16 kA

Welding Capacity

Mild Steel (Max.): 3.0 + 3.0 mm

Control System

Control Type: Microprocessor-based Synchronous

Weld Time: 1-20 Cycles (adjustable)

Squeeze & Hold Time: Adjustable

Mechanical Structure

Throat Depth: 500 mm

Max. Electrode Force: 450 kgf

Pressure Method: Pneumatic

Electrode Diameter: Ø16 mm

Cooling System

Cooling Method: Water Cooling

Physical

Net Weight: 350 kg
